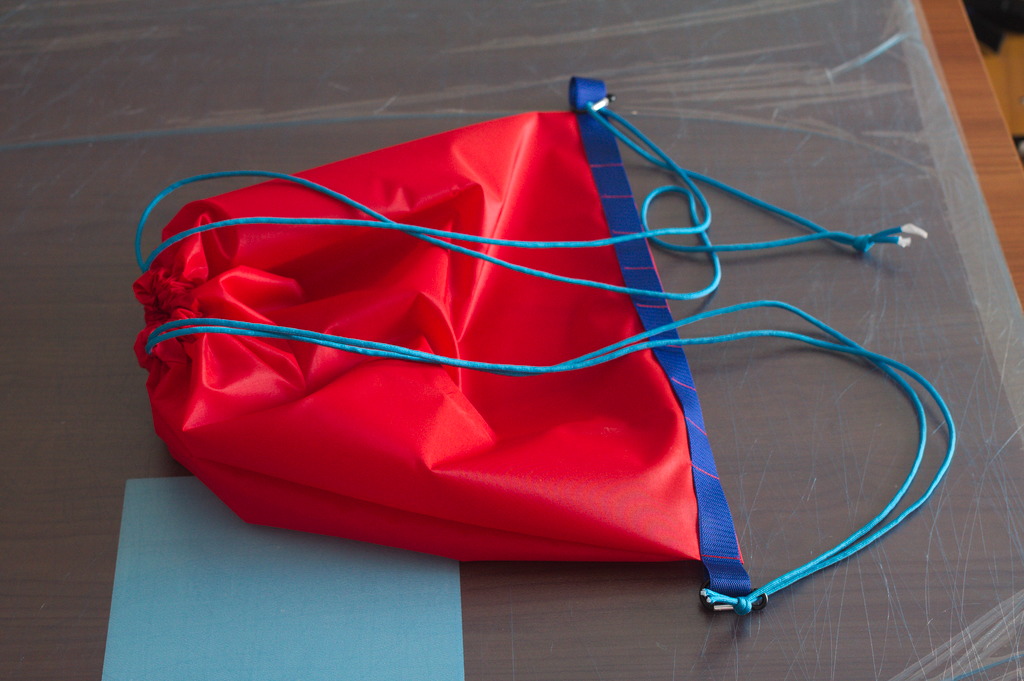

Drawstring Backpack

drawstring_backpack/red_backpack-tmb.jpg

Have silnylon, must craft.

A drawstring backpack is quite an easy project, a good way to try your hands at working with technical materials and an useful item to have around, so I've made a couple, and plan to make a few other ones.

After I took pictures I've found an improvement: adding more knots to the cords make it easier to adjust the strap lenght: I will add more pictures later as I will be able to take them.

Instructions

You will need:

  • one rectangle of lightweight water repellent fabric, 102x51 cm;
  • 60 cm of webbing;
  • 2 pieces of cord, 2 meters each;
  • 2 minibiners.

When using coated fabric you want to minimize holes, so use a longer stitch than usual (I've used about 3mm) and avoid using pins as much as possible, and only use them in the sewing allowances. Do however backstitch the start and end of all seams, for stability.

drawstring_backpack/01-webbing-tmb.jpg

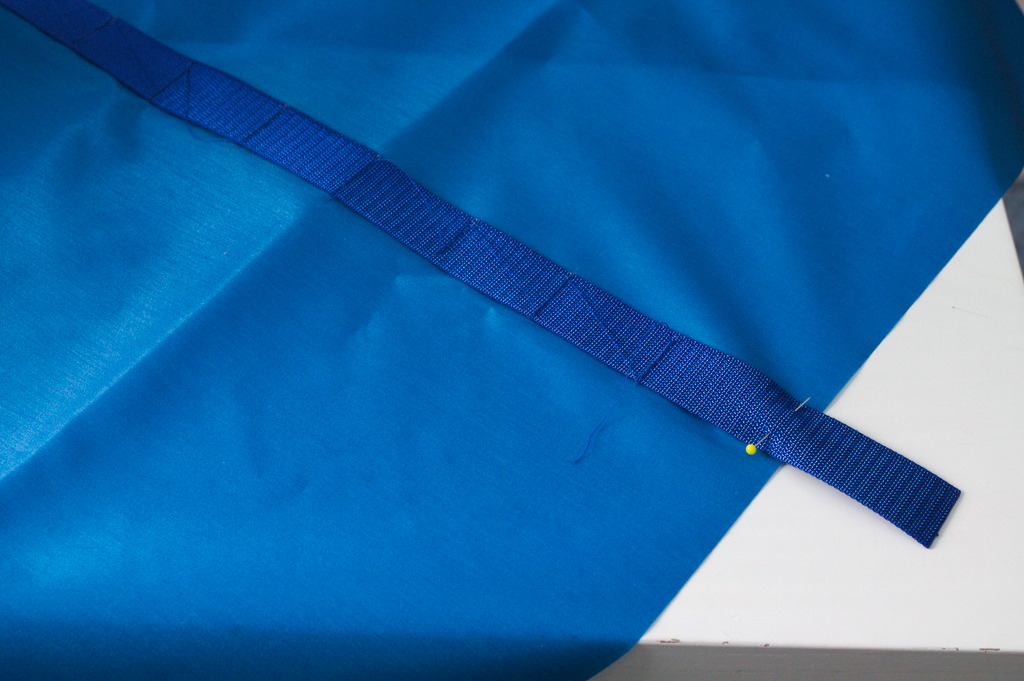

Fold the fabric in half on the long edge to find the middle, and put the webbing on the right side, centered on the fabric; open the fabric. Starting from the center of the webbing measure every 4 cm and sew it to the main body, backticking on each seam.

drawstring_backpack/02-finish-sides-tmb.jpg

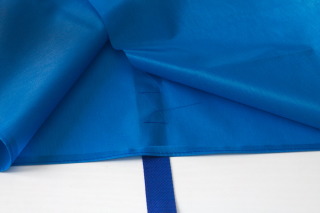

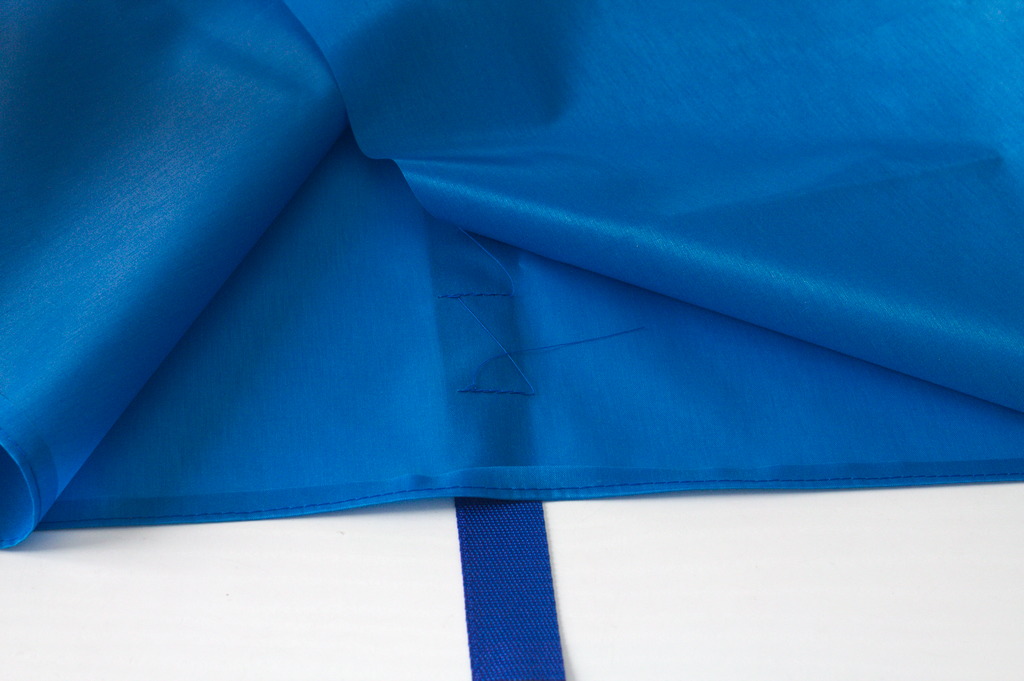

Fold the long sides towards the wrong side by 1 cm, sew 1-2 mm from the fold.

drawstring_backpack/03-side_seam-tmb.jpg

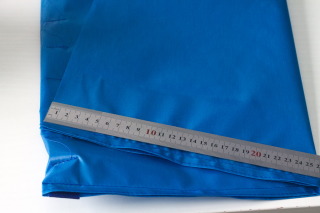

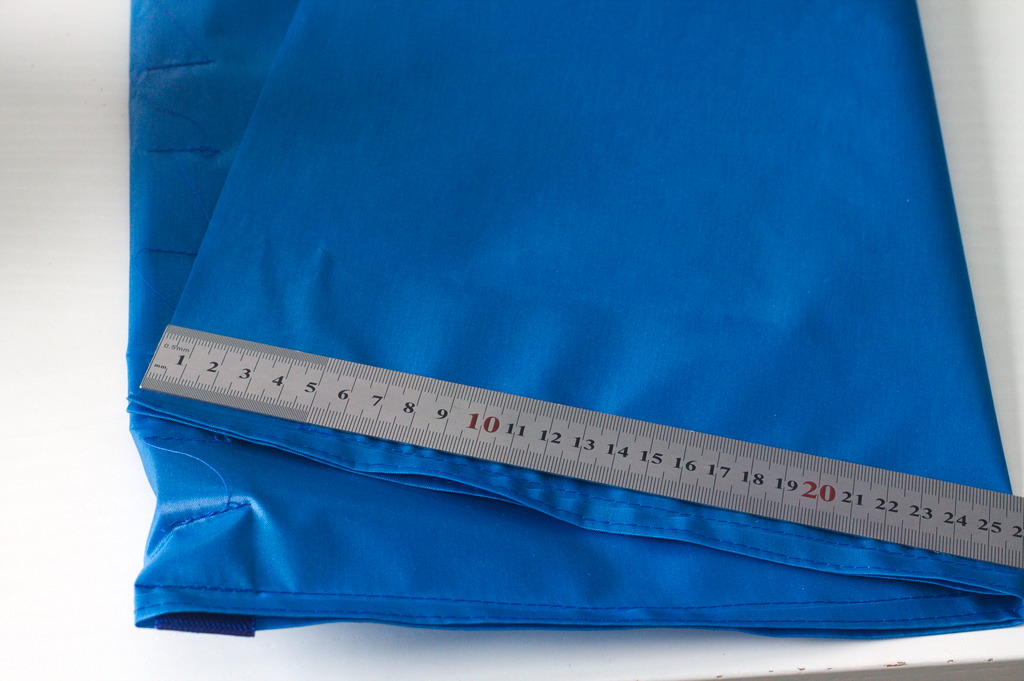

Place the right sides together, pulling the webbing so that its edge is aligned to the (just folded) edge of the fabric, sew the sides with 1 cm allowance, stopping 5 cm from the top; turn inside out.

drawstring_backpack/04-bottom_angle-tmb.jpg

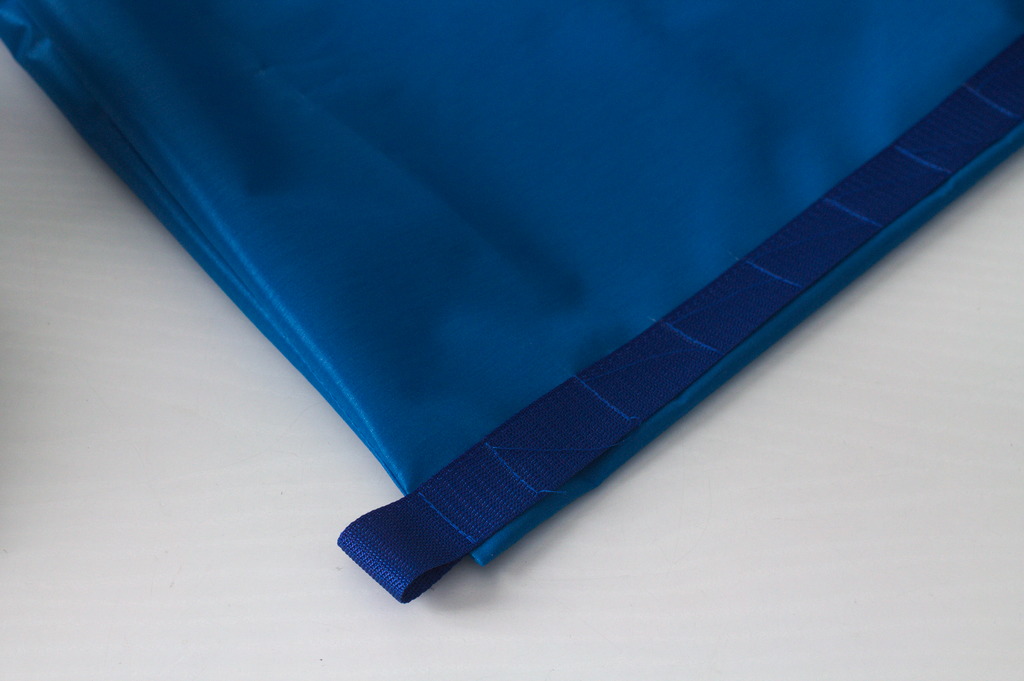

Sew and backtack on the webbing at about 1 mm from the border to stabilize the loop.

drawstring_backpack/05-top_opening-tmb.jpg

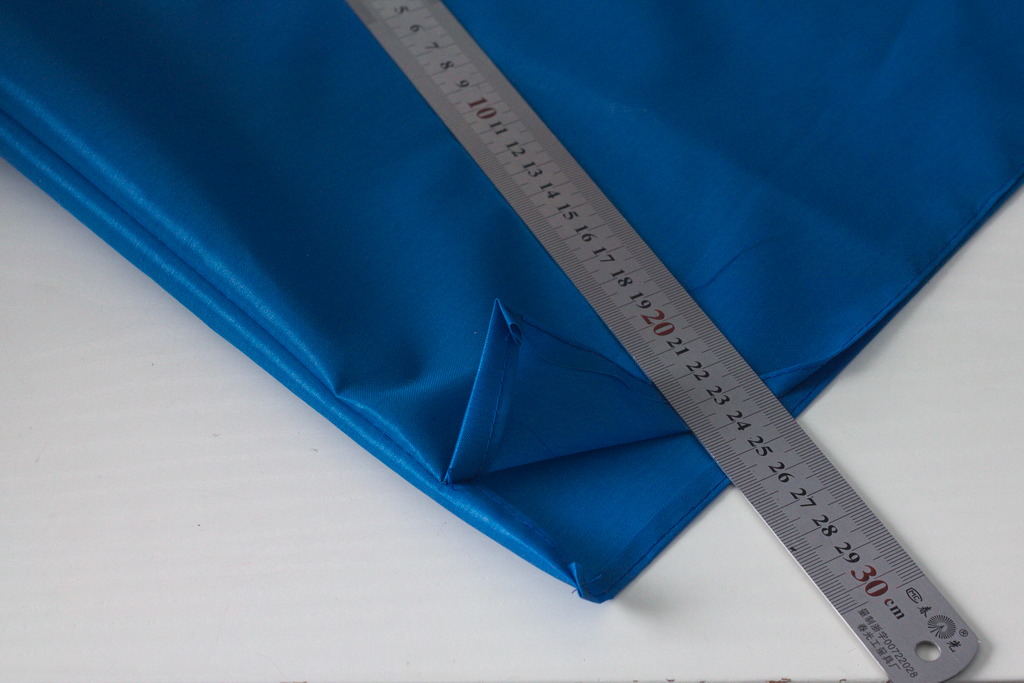

Fold down the top edges by 1 cm, sew again 1 mm from the edges.

drawstring_backpack/06-drawstring-tmb.jpg

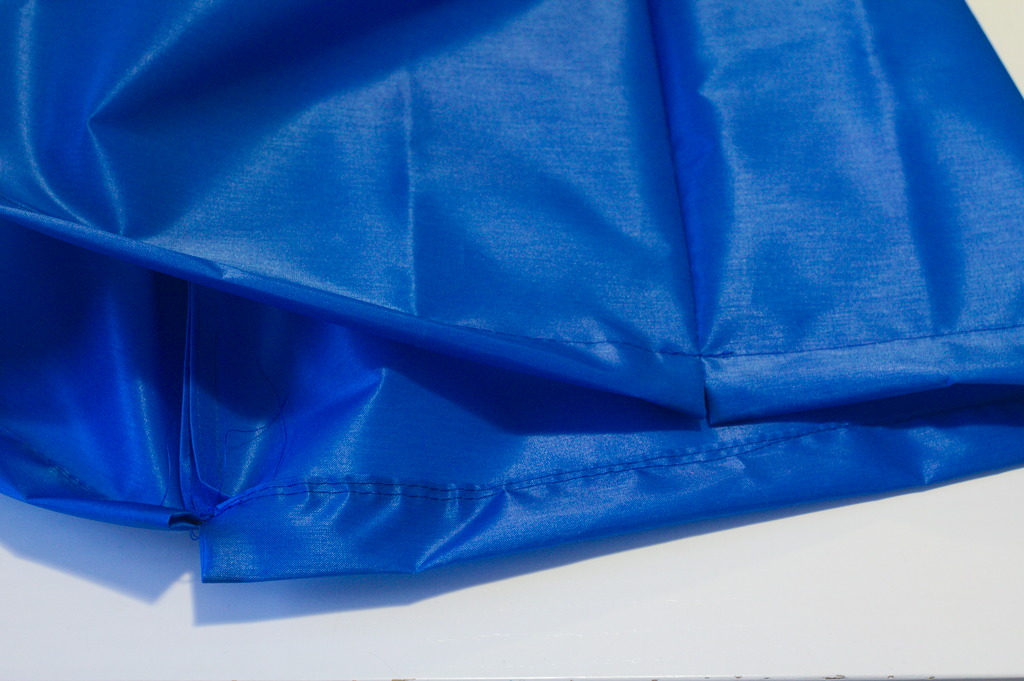

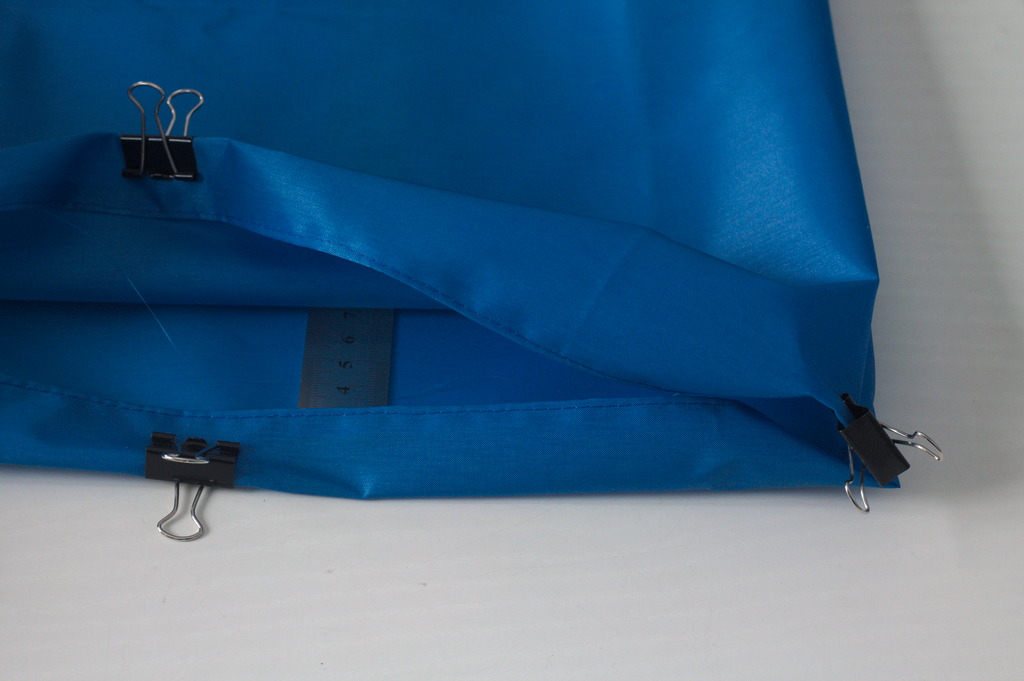

Fold down again 2.5 cm and sew to create a channel for the drawstrings, backticking near both side seams to add stability.

drawstring_backpack/07-finished_drawstring-tmb.jpg

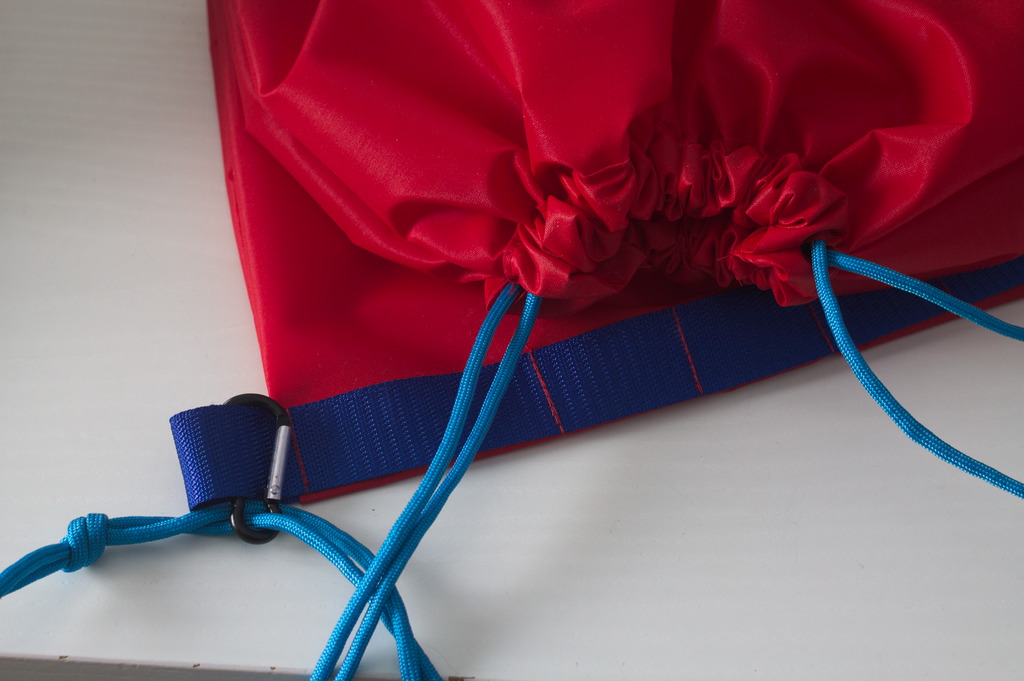

The channel will have two openings: insert the cords so that they exit from the opposite corners, make a knot at the bottom and attach them to the webbing loops with minibiners so that you can adjust the lenght.

drawstring_backpack/08-cords-tmb.jpg
Send a comment: unless requested otherwise I may add it, or some extract, to this page.
